ALC-1809 AMPLIFIED LOUDSPEAKER CONTROLLER
At the nucleus of every Theory surround sound system is the ALC-1809, 9-channel Amplified Loudspeaker Controller. With 1,800W and 96kHz/32-bit digital signal processing, the ALC-1809 is the AV version of an integrator’s swiss army knife, combining the functionality of five products in one: a multi-channel DSP processor, high power multichannel home theater and distributed audio amplifier, multichannel mixing amplifier, multichannel bass manager, and high-resolution loudspeaker processor, all in a stylish, 1U package.
At the nucleus of every Theory surround sound system is the ALC-1809, 9-channel Amplified Loudspeaker Controller. With 1,800W and 96kHz/32-bit digital signal processing, the ALC-1809 is the AV version of an integrator’s swiss army knife, combining the functionality of five products in one: a multi-channel DSP processor, high power multichannel home theater and distributed audio amplifier, multichannel mixing amplifier, multichannel bass manager, and high-resolution loudspeaker processor, all in a stylish, 1U package.
At the nucleus of every Theory surround sound system is the ALC-1809, 9-channel Amplified Loudspeaker Controller. With 1,800W and 96kHz/32-bit digital signal processing, the ALC-1809 is the AV version of an integrator’s swiss army knife, combining the functionality of five products in one: a multi-channel DSP processor, high power multichannel home theater and distributed audio amplifier, multichannel mixing amplifier, multichannel bass manager, and high-resolution loudspeaker processor, all in a stylish, 1U package.
ALC-1809 SPECIFICATIONS
| Description: | 9-Channel Amplified Digital Loudspeaker Controller |
| 1U Chassis | |
| Supports: 3.1, 3.2, 3.3, 5.1, 5.2, 5.3, 7.1, 7.2, 5.2.2 ATMOS | |
| Operation: | Low-Z Operation Only |
| Inputs: | 8 x Balanced Analog Audio w Loop Outputs |
| Outputs: | 9 x Speaker Outputs |
| 8 x Balanced Analog Audio Looping Outputs | |
| Trigger Loop Output | |
| Trigger: | +12VDC or Contact Closure Trigger Input w Loop |
| Audio Operation: | 96kHz/24-bit |
| On-Board DSP: | 96kHz/32-bit |
| DSP Features: | Loudspeaker Processing For All Theory Models, plus: |
| Automatic Configuration of Surround System Settings | |
| Input Trim | |
| Signal Routing | |
| Gain | |
| Delay (up to 75msec per channel) | |
| 160 Parametric EQ Filters (20 per channel) | |
| 8 x 8 Parametric Bass Management (Bass Steering) | |
| Mono Summing: 8 Stereo + 4 mono Signals | |
| Bass and Treble Controls | |
| Master Volume | |
| Clip Limiter | |
| Internal Sine and Pink Noise Sources | |
| Frequency Response: | 20Hz-20kHz, +/-0.2dB |
| Power Output: | Channels 0-1-2: 300W, 4-ohms |
| Channels 3-8: 100W, 4-ohms, bridgeable to 300W* | |
| Voltage Gain: | 30dB |
| Input Sensitivity: | Channels 0-2: 1.1V |
| Channels 3-8: 660mV | |
| Power Requirements: | Standby: 16W |
| Idle: 41W | |
| (1/8 power, all ch. driven): 281W | |
| Idle Noise(A-Wt): | Channels 0-2: -82dBV (0.00008V) |
| Channels 3-8: -80dBV (0.00010V) | |
| Signal to Noise Ratio: | Channels 0-2: 108dB |
| Channels 3-8: 105dB | |
| Distortion (1kHz, 1dB below max output): | <0.02% |
| AC Operation: | 100V-240VAC, 50-60Hz |
| Terminals: | Euroblock Connector with Parallel Output |
| Outdoor Capability: | Indoor Use Only |
| Mounting Points: | Surface or Rack Mount (with included Rack Ears) |
| Finish: | Matte Bright Aluminum |

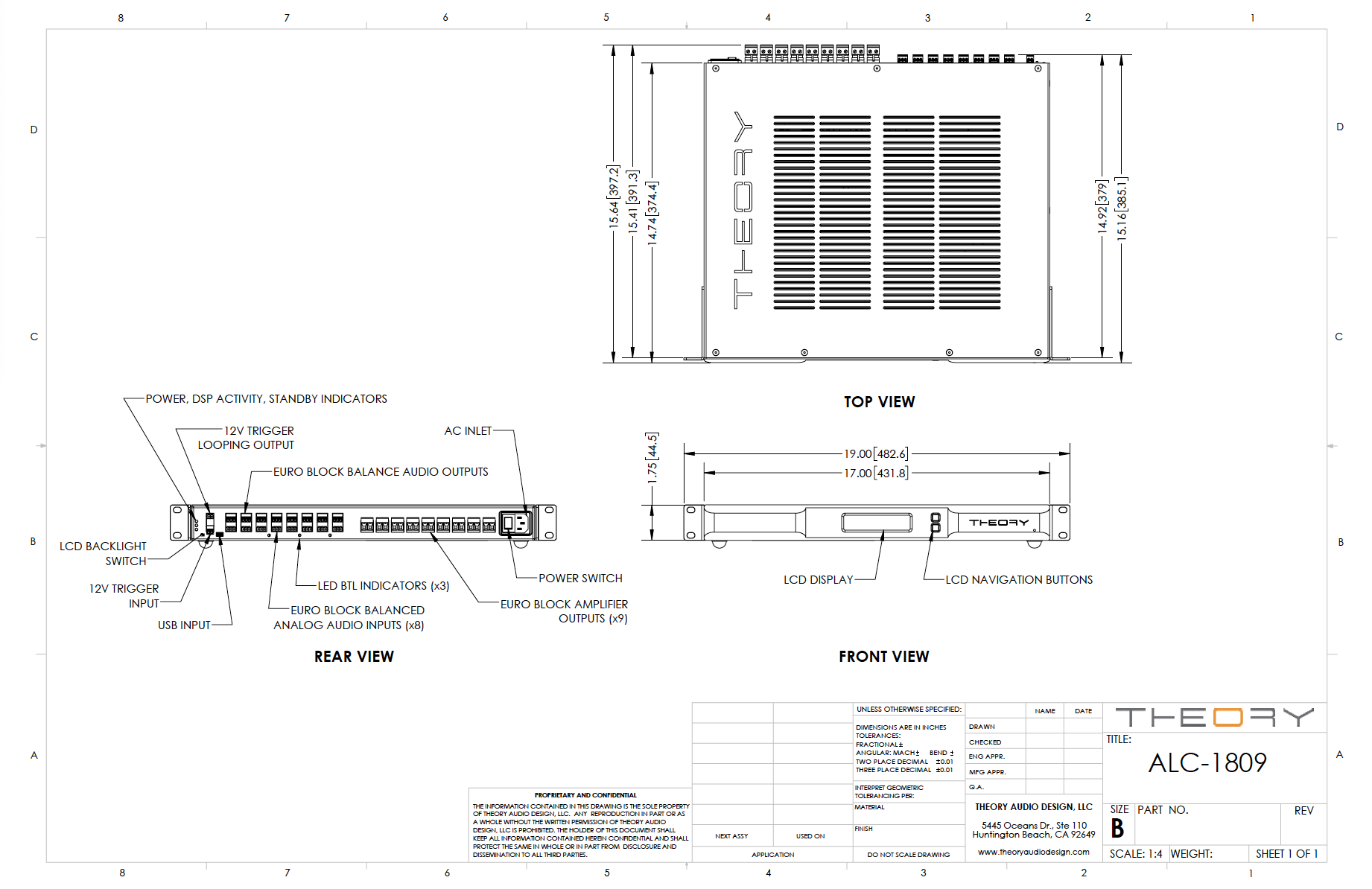

| Dimensions: | 1.75" H x 17" W x 15" D (44mm H x 432mm W x 381mm D) |
| 1.75" H x 19" W x 15" D (44mm H x 483mm W x 381mm D) with Rack Ears | |
| Weight: | 13 lbs. (5.9 kg) |
| Included Accessories: | Rack Ears |
| 8 x Euro-to-XLR Adapters |
AUTOMATOR™
Theory's Automator™ software runs on the ALC-1809 and the intuitive interface walks installers through a simple five-step system configuration. Installers can deploy and configure spectacular sounding surround sound systems with up to 18 loudspeakers with minimal effort.
With a single ALC, a 7.2 or 5.2.2 system can be configured from start to finish in just 15 minutes. Or, use two ALC-1809s to configure systems up to 9.4.4 or 7.4.6 just as easily. Automator™ also provides printable wiring graphics and tabular wiring diagrams to simplify system hook-up.
