DLC-250.8 AMPLIFIED LOUDSPEAKER CONTROLLER
The DLC-250.8 is an 8-channel amplifier capable of delivering 250W into 4, 8, and 16-ohms from any channel pair, or 125W into 4, 8 or 16-ohms all channels driven; this 1U loudspeaker controller packs a punch into minimal rack space. If that weren’t enough, the DLC-250.8 can drive 70V/100V hi-Z loudspeakers direct - no internal transformer is required.
The DLC-250.8 can drive up to 32 Theory 16-ohm loudspeakers in Lo-Z mode, or up to 128 in Hi-Z mode - all from a 1U chassis!
The DLC loudspeaker controllers from Theory can be configured via its on-board web interface accessible via wired Ethernet, or via its on-board Wifi access point and includes matrix mixing, priority audio routing and ducking, parametric EQ, delay, gain and limiter DSP objects to make system optimization easy.
Full API and modules for AMX, Control4, Crestron, Crestron Home, ELAN, Q-SYS, and RTI are available.
NOW AVAILABLE!
The DLC-250.8 is an 8-channel amplifier capable of delivering 250W into 4, 8, and 16-ohms from any channel pair, or 125W into 4, 8 or 16-ohms all channels driven; this 1U loudspeaker controller packs a punch into minimal rack space. If that weren’t enough, the DLC-250.8 can drive 70V/100V hi-Z loudspeakers direct - no internal transformer is required.
The DLC-250.8 can drive up to 32 Theory 16-ohm loudspeakers in Lo-Z mode, or up to 128 in Hi-Z mode - all from a 1U chassis!
The DLC loudspeaker controllers from Theory can be configured via its on-board web interface accessible via wired Ethernet, or via its on-board Wifi access point and includes matrix mixing, priority audio routing and ducking, parametric EQ, delay, gain and limiter DSP objects to make system optimization easy.
Full API and modules for AMX, Control4, Crestron, Crestron Home, ELAN, Q-SYS, and RTI are available.
NOW AVAILABLE!
The DLC-250.8 is an 8-channel amplifier capable of delivering 250W into 4, 8, and 16-ohms from any channel pair, or 125W into 4, 8 or 16-ohms all channels driven; this 1U loudspeaker controller packs a punch into minimal rack space. If that weren’t enough, the DLC-250.8 can drive 70V/100V hi-Z loudspeakers direct - no internal transformer is required.
The DLC-250.8 can drive up to 32 Theory 16-ohm loudspeakers in Lo-Z mode, or up to 128 in Hi-Z mode - all from a 1U chassis!
The DLC loudspeaker controllers from Theory can be configured via its on-board web interface accessible via wired Ethernet, or via its on-board Wifi access point and includes matrix mixing, priority audio routing and ducking, parametric EQ, delay, gain and limiter DSP objects to make system optimization easy.
Full API and modules for AMX, Control4, Crestron, Crestron Home, ELAN, Q-SYS, and RTI are available.
NOW AVAILABLE!
DLC-250.8 SPECIFICATIONS
| Description: | 8-Channel Amplified Distribution Loudspeaker Controller |
| 1U Chassis | |
| IP Control via Ethernet or Built-In WiFi Access Point | |
| Power Sharing Between Neighboring Channels | |
| Operation: | LoZ and HiZ (70V/100V) Operation |
| Inputs: | 8 x Balanced Analog Audio |
| 8 x RCA Unbalanced Analog Audio | |
| 1 x S/PDIF Digital Audio (stereo) | |
| Outputs: | 8 x Speaker Outputs |
| S/PDIF Digital Audio (stereo) | |
| Trigger: | +12VDC |
| Audio Operation: | 48kHz/24-bit |
| On-Board DSP: | 48kHz/32-bit |
| DSP Features: | Loudspeaker Processing For All Theory Models, plus: |
| Input Matrix Mixer | |
| 5 Parametric Input EQ Filters | |
| Input Trim | |
| Stereo/Mono Inputs and Zones | |
| Signal Routing Including Priority Automatic Routing | |
| Audio Ducking | |
| 10 Parametric Output EQ Filters | |
| Crossovers | |
| Gain | |
| Delay | |
| Polarity | |
| Peak and RMS Limiters | |
| Frequency Response: | 20Hz-20kHz, +/-0.25dB |
| Power Output: | 250W per channel @ 4, 8, 16-ohms and 70V/100V |
| 125W per channel @ 4, 8, 16-ohms all channels driven | |
| 125W per channel @ 70V/100V all channels driven | |
| Voltage Gain: | Variable |
| Input Sensitivity (selectable): | +14dBu |
| +4dBu | |
| -10dBV (Unbalanced RCA) | |
| Microphone | |
| Power Requirements: | Standby: <1W |
| (1/8 power, all ch. driven): 70W | |
| Idle Noise(A-Wt): | -78dBV |
| Signal to Noise Ratio: | >106dB |
| Distortion (1kHz, 1dB below max output): | <0.02% |
| AC Operation: | 100V-240VAC, 50-60Hz |
| Terminals: | Eurblock Connectors |
| Outdoor Capability: | Indoor Use Only |
| Mounting Points: | Rack Mount (with included accessories) |
| Finish: | Matte Black |
| Dimensions: | 1.75" H x 19.0" W x 12.6" D (44mm H x 483mm W x 319mm D) |
| Net Weight: | 7.7 lbs. (3.5 kg) |
| Included Accessories: | Rack Mount Ears |

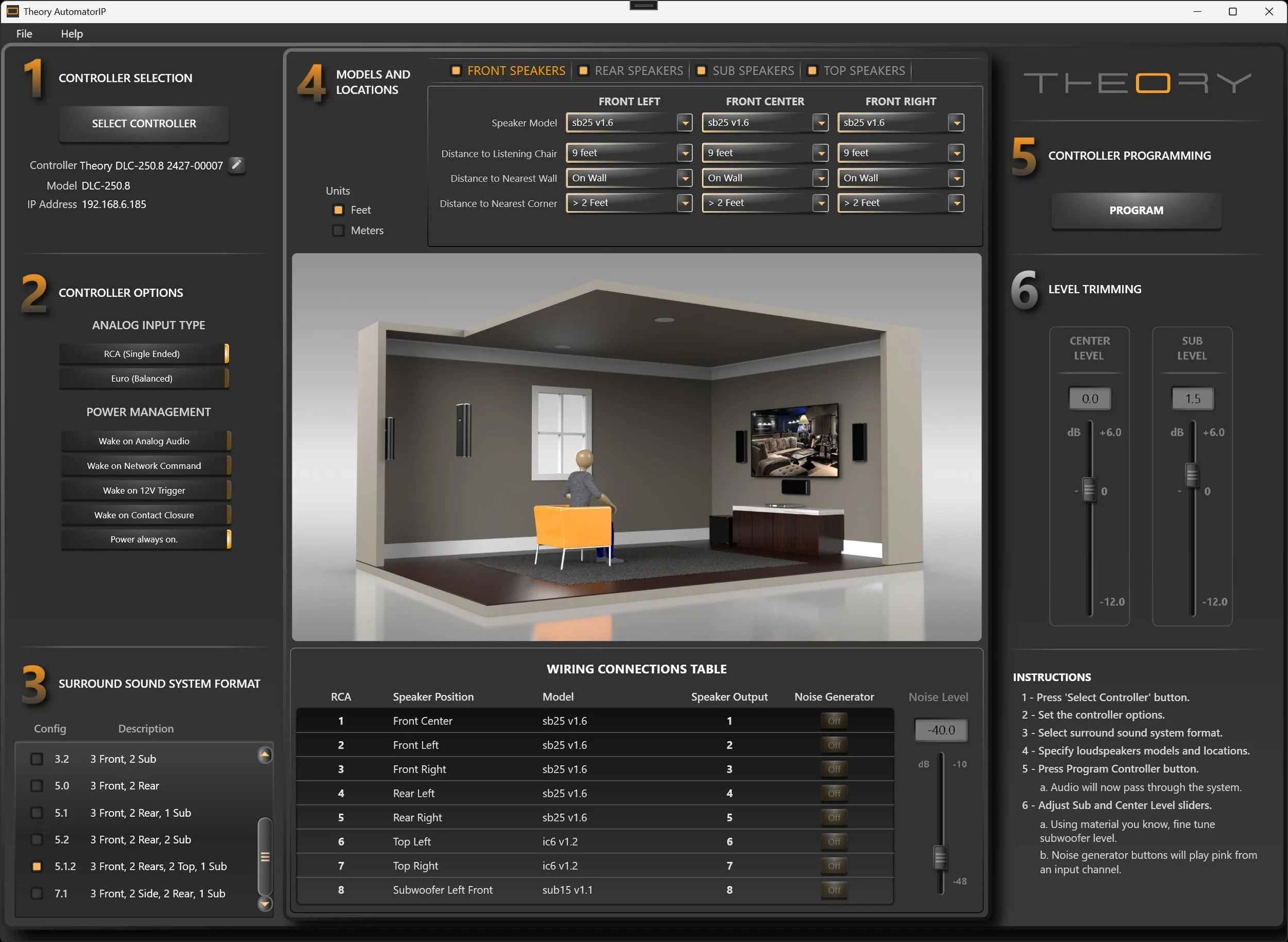

DLC-250.8 USER INTERFACE
DLC-250.8 DOWNLOADS
DLC-250.8 Data Sheet

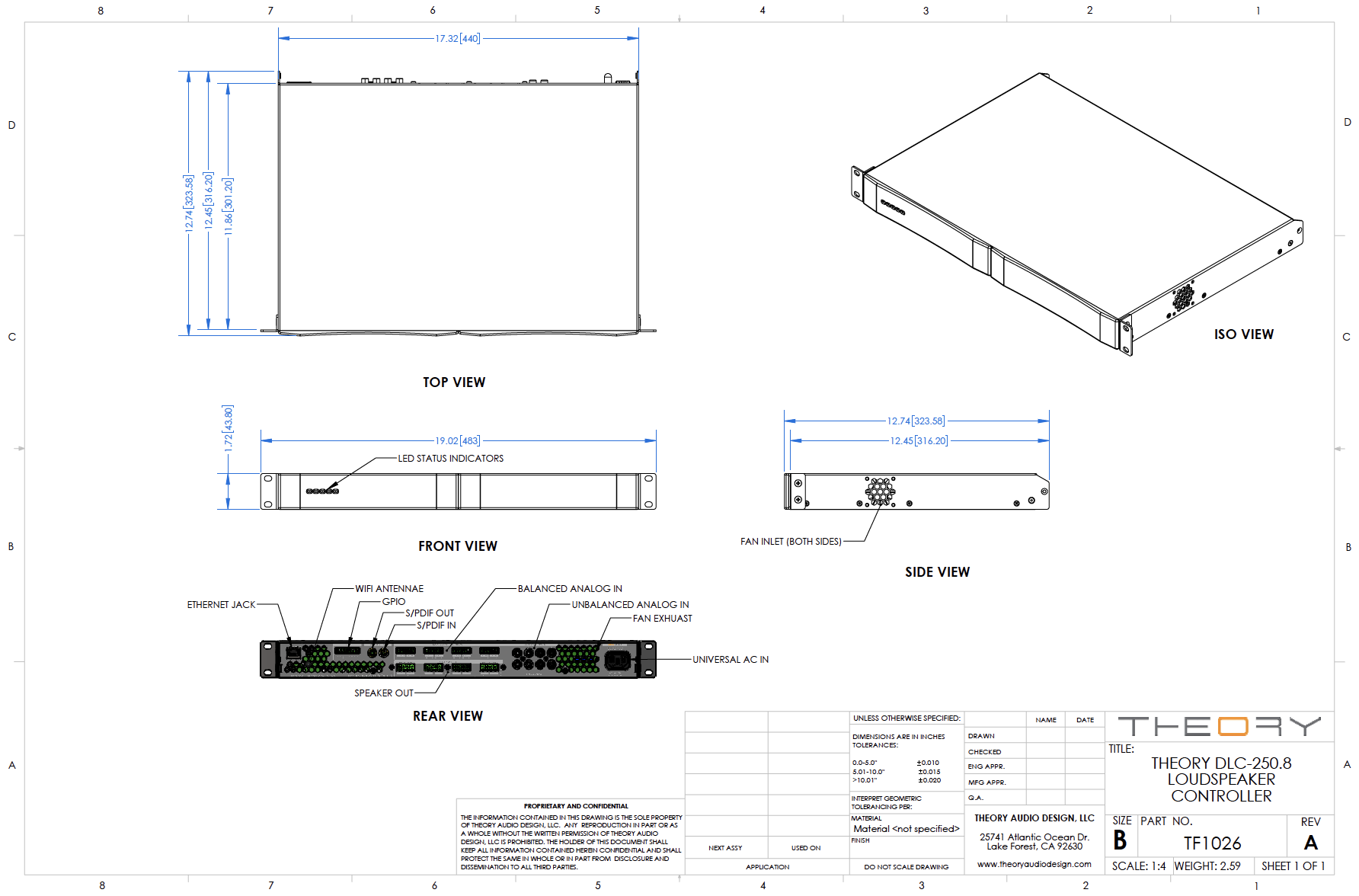

DLC-250.8 3-View Drawings
DLC-250.8 Quick Start Installation Guide
DLC Third Party Control Drivers
DLC-250.8 GALLERY
DLC Seires 2 3-Quarter Stack
DLC Series 2 Stack
