iws12-6 High Output Architectural Subwoofer

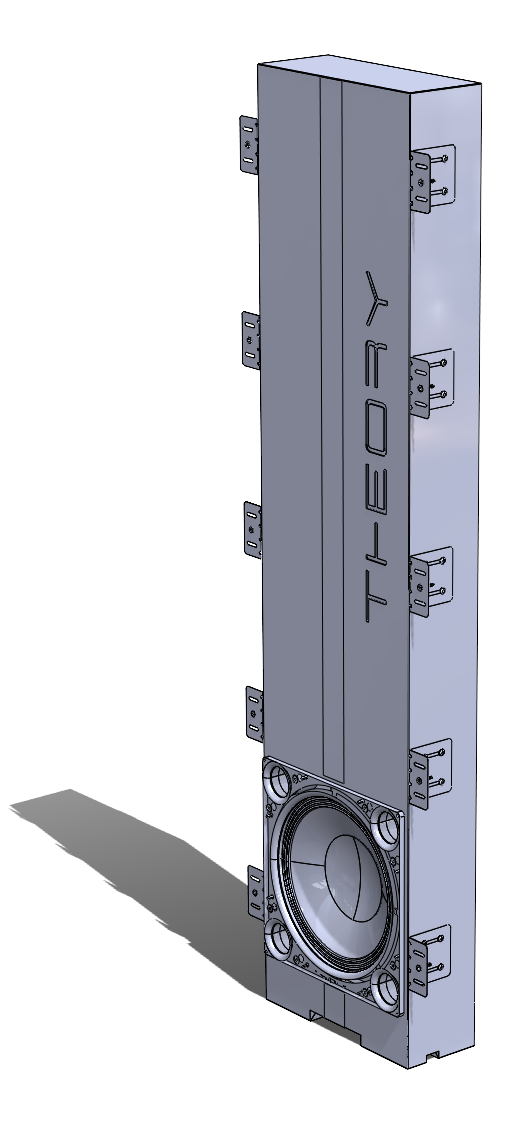

The iws12-6 install subwoofer employs a high-power, 1400W, 4” voice-coil long-throw driver in a 5.5” deep enclosure that can be installed flush into 2” x 6” stud walls, or surface mounted with only 5.5” of total depth. The bass it provides belies intuition, extending deeper than seems possible, with tight, tuneful expression. It’s the perfect complement to Theory Professional full range speakers to create a truly astonishing high-energy environment.
*iws12-6 enclosure and iws12 speaker assembly are sold separately.
The iws12-6 install subwoofer employs a high-power, 1400W, 4” voice-coil long-throw driver in a 5.5” deep enclosure that can be installed flush into 2” x 6” stud walls, or surface mounted with only 5.5” of total depth. The bass it provides belies intuition, extending deeper than seems possible, with tight, tuneful expression. It’s the perfect complement to Theory Professional full range speakers to create a truly astonishing high-energy environment.
*iws12-6 enclosure and iws12 speaker assembly are sold separately.
The iws12-6 install subwoofer employs a high-power, 1400W, 4” voice-coil long-throw driver in a 5.5” deep enclosure that can be installed flush into 2” x 6” stud walls, or surface mounted with only 5.5” of total depth. The bass it provides belies intuition, extending deeper than seems possible, with tight, tuneful expression. It’s the perfect complement to Theory Professional full range speakers to create a truly astonishing high-energy environment.
*iws12-6 enclosure and iws12 speaker assembly are sold separately.
GOTTA HAVE IT?
Click BUY NOW below, or WHERE TO BUY above to find a Theory partner near you.
ENCLOSURE
SPEAKER ASSEMBLY
GRILLE
iws12-6 SPECIFICATIONS
| Description: | 12” High-Output In-Wall Subwoofer for 2" x 6" walls |
| Operation: | Passive, Requires 1 Theory ALC Amp channel |
| DSP Requirements: | Requires Model-Specific Theory-Certified DSP Loudspeaker Processing |
| Drivers: | 1 x 12" Theory 1400W 4” Voice Coil Long Throw Woofer |
| Enclosure: | Multi Plywood |
| Terminals: | Twin Spring-Loaded Push Terminals |
| Mounting Points: | Low-Profile Steel Angle Mounting Brackets (10x) |
| Outdoor Capability: | Indoor Use Only |
| Bandwidth: | 24Hz -125Hz, - 3dB; |
| 18Hz, -10dB | |
| Sensitivity: | 95.5 dB |
| Power Handling: | 700W (AES) |
| 1400W (Continual); | |
| 2800W (Peak) | |
| Minimum recommended Power: | |
| Max Output: | 124 dB SPL / 1m (AES) |
| 127dB SPL / 1m (Continuous) | |
| Nominal Impedance: | 8-ohms |
| Colors: | Black, White Perforated Metal Grille Optional |

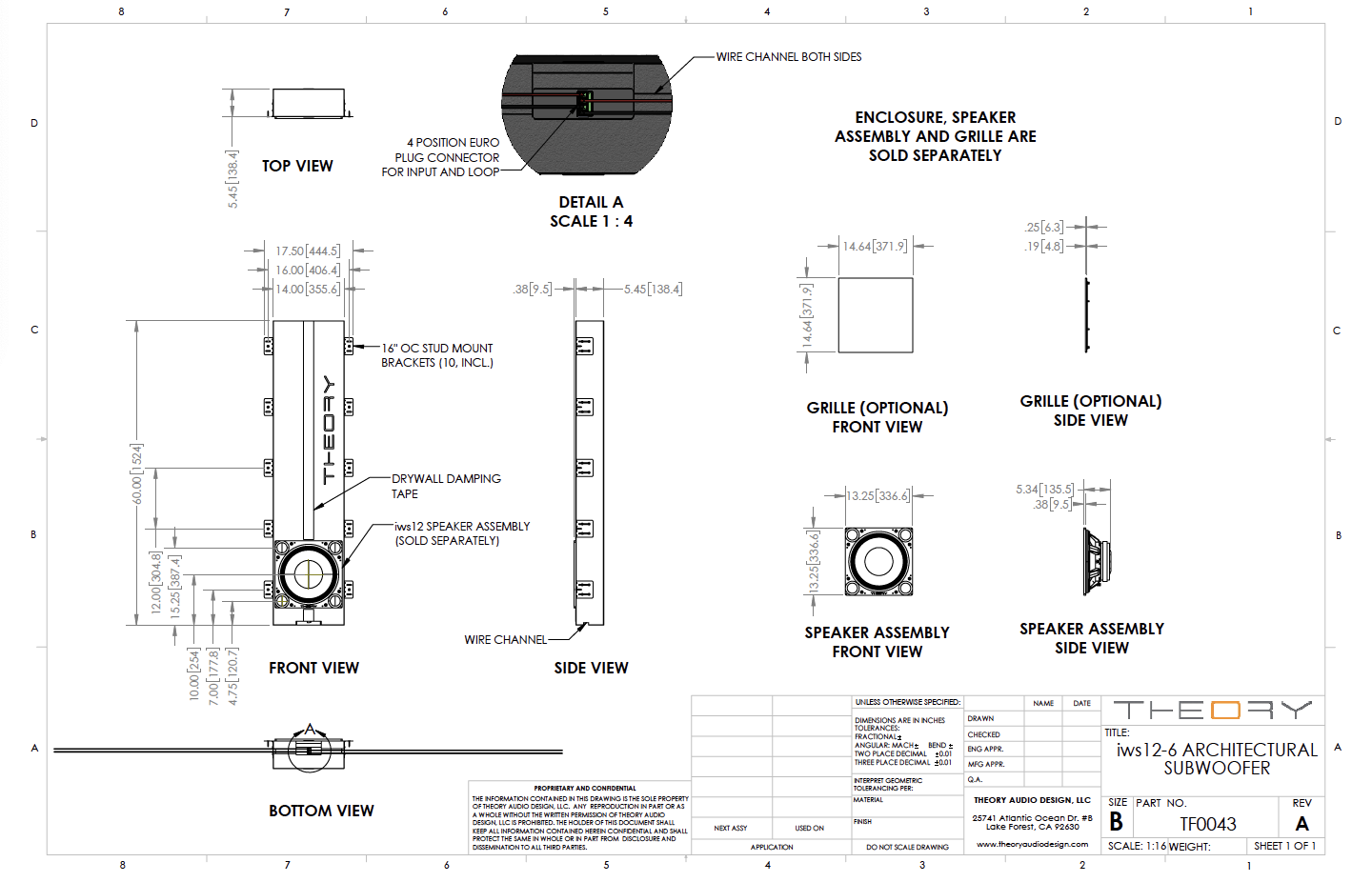

| Dimensions: | Enclosure Only: 60" H x 14" W x 5.5" D (1524mm H x 356mm W x 140mm D) |
| Enclosure w Speaker Assembly: 60" H x 14" W x 5.9" D (1524mm H x 356mm W x 150mm D) | |
| Total Installed Depth: | 5.5" (140mm) |
| Max. Wall Thickness: | N/A |
| Net Weight: | 49 lbs. (22.2 kg) |
| Included Accessories: | Low Profile Angle Mount Brackets for 16" O.C. Studs |
| Optional Accessories: | White Paintable Perforated Low-Profile Grille |
iws12-6 ACCESSORIES

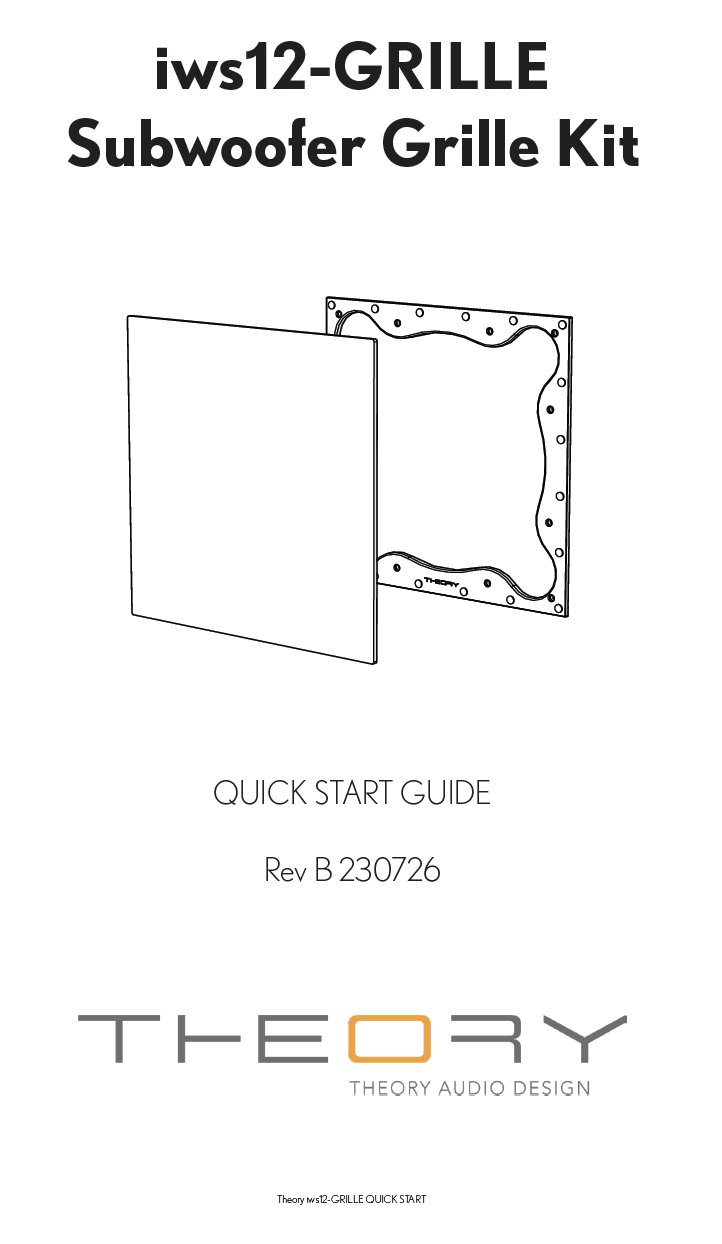

TIME TO GRILLE.
The iws12-6 optional low-profile paintable, perforated grille allows the sub to completely disappear within any environment.
